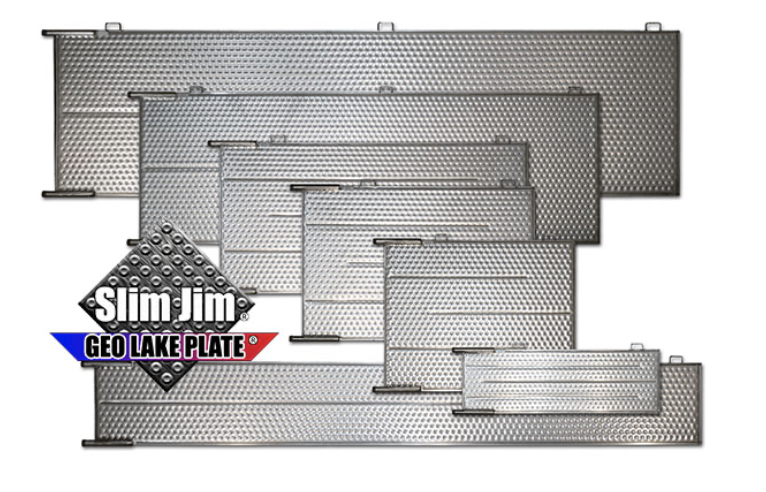

Slim Jim® - Geo Lake Plate®

Sizing Information

Slim Jim® Geo Lake Plate® heat  exchangers are rated using HEAT OF REJECTION (HR) COOLING

Slim Jim® Geo Lake Plate® heat exchangers also work very well for HEAT OF EXTRACTION (HE) HEATING

Flow Rate:  Three (3) GPM per ton Heat Pump equipment

Approximate Heat Transfer Rate: 100 BTU per Sq. Ft. transfer surface of plate per degree Delta T in still body of water.  Both sides of plate are exchanger surface.  (Note, any current accentuates performance greatly and allows for closer grouping of multiple plate assembly - such as river applications)

Example: SJ-03T Plate

4' x 5' x 2 = 40

40 x 100 = 4,000

4,000 x 10 ΔT = 40,000 BTU approx. Heat of Rejection

It is extremely important, especially in a heating dominated environment, to ensure you have enough plate surface area to handle the heating load.

SIZING REQUEST FORM

Please submit the form to request your copy of the following attachments:

  • Installation Requirements Info Sheet

  • Project Information Sheet – (For Slim Jim® and Geo Lake Plate® Exchanger Sizing, please complete this document and return to AWEB Supply)

  • Slim Jim® Geo Lake Plate Packet

Calculate the volume of your pond or lake with the AWEB GEO / AWEB SUPPLY CO easy-to-use instant POND CALCULATOR

Pond Size Calculator
Untitled

Pond Size Calculator
  CIRCULAR LAKES
 Data Description Enter Data
  Diameter, Feet
  Average Depth, Feet
  Results
  Area, Square Feet
  Area, Acres
  Total Acre Feet
  Lake Volume, Gallons
  SQUARE or RECTANGULAR LAKES
Enter Data
  Length, Feet
  Width, Feet
  Average Depth, Feet
    Results
  Area, Square Feet
  Area, Acres
  Total Acre Feet Feet =
  Lake Volume, Gallonsme, Gallons
 ESTIMATING LAKE VOLUME
  Enter Data
  Surface Acres:cres
  Average Depth:epth
    Results

Total Acre Feet:  Feet =


Lake Volume, Gallons:  me, Gallonsme
